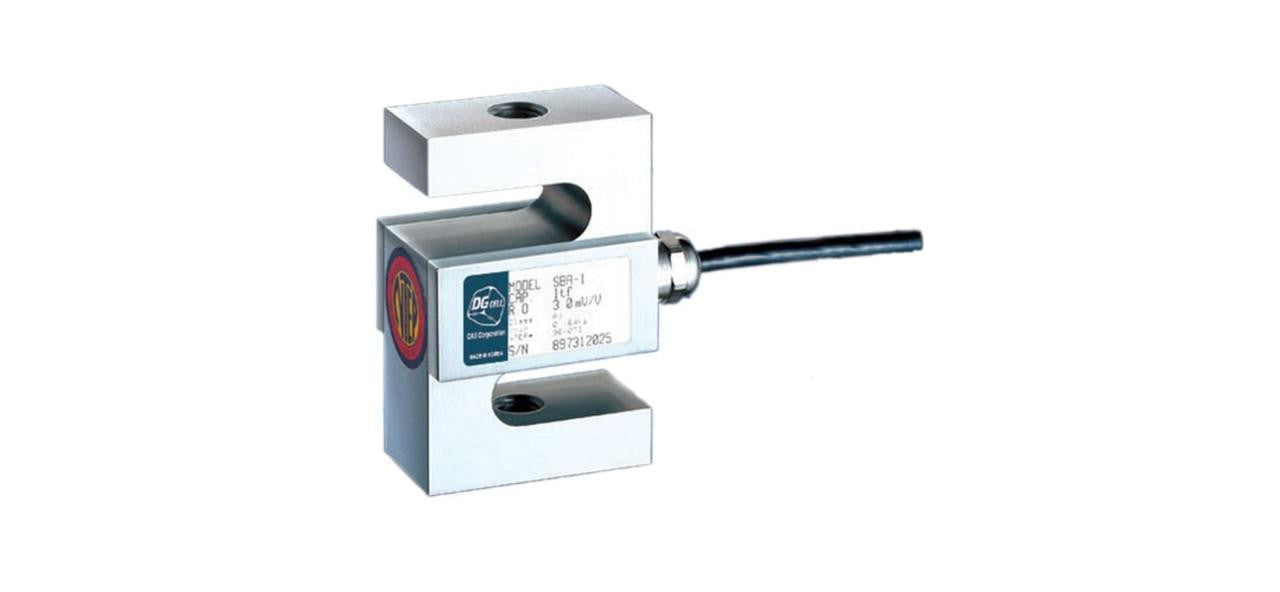

CAS SBA-10K S-Beam Load Cell Environmentally Sealed, Class III, NTEP, 10000 lb
SKU SBA-10K
Save 19%
Original price
$232.00
Original price
$232.00
-
Original price
$232.00
Original price
$232.00
Current price
$188.50
$188.50
-
$188.50
Current price
$188.50
Features:
10000 lb capacity rating
Nickel plated tool steel
IP 65 rating
3 mV/V output
Load cell cable length 20 ft
1 year limited manufacturer's warranty
NTEP Approved CC 96-073A1
Safe overload up to 150% capacity
Specifications
| brand | CAS |
|---|---|
| capacity-lb | 10000 |
| Cell-Input-Resistance | 400 +/- 25 ohms |
| Cell-Output-Resistance | 350 +/- 3.5 ohms |
| Construction | tool steel, nickel plated |
| dimensions | 3.5" x 1" x 4.75" |
| Hole-Threading | 3/4 - 16UNF |
| list-price | 232.00 |
| Load-Cell-output | 3.0 mV/V (Full Scale) |
| Load-Cell-Rated-Excitation | 10 VDC (maximum of 15 V) |
| manufacturer-part-number | SBA-10K |
| Operating-temperature | -30°C to 80°C |
| Spec Sheet | Spec_Sheet-Load_Cell_SBA.pdf |
| Warranty | 1 year limited manufacturer's warranty |
