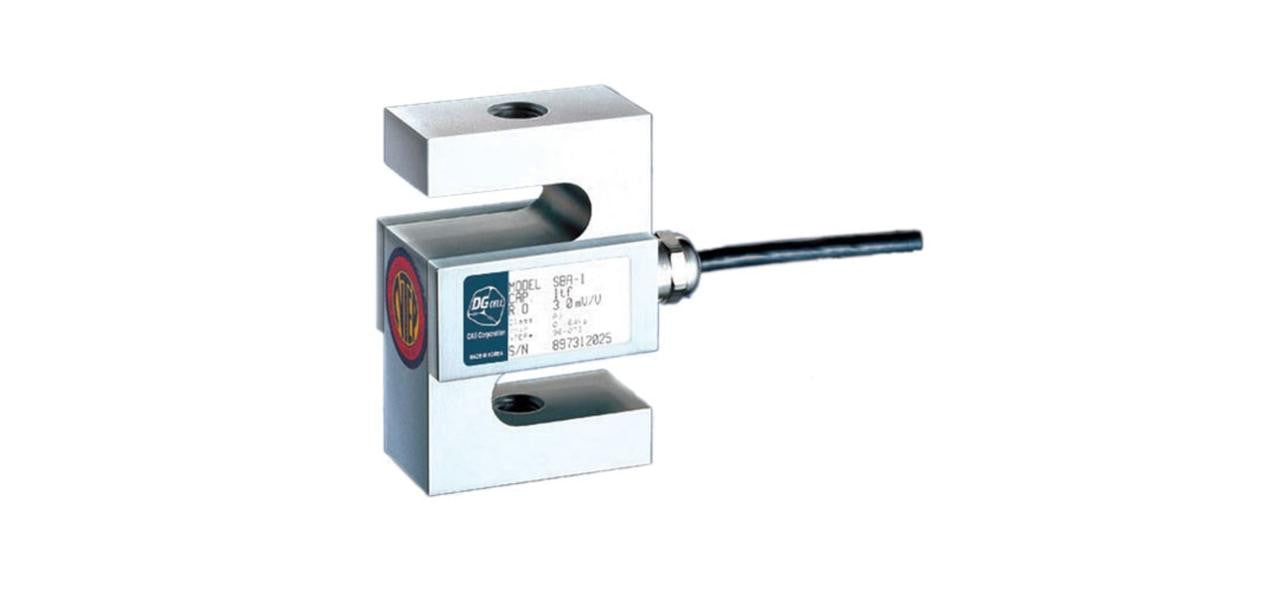

CAS SBA-20K S-Beam Load Cell Environmentally Sealed, Class III, NTEP, 20000 lb
SKU SBA-20K
Save 19%
Original price
$317.00
Original price
$317.00
-
Original price
$317.00
Original price
$317.00
Current price
$257.56
$257.56
-
$257.56
Current price
$257.56
Features:
20000 lb capacity rating
Nickel plated tool steel
IP 65 rating
3 mV/V output
Load cell cable length 20 ft
1 year limited manufacturer's warranty
NTEP Approved CC 96-073A1
Safe overload up to 150% capacity
Specifications
| brand | CAS |
|---|---|
| capacity-lb | 20000 |
| Cell-Input-Resistance | 400 +/- 25 ohms |
| Cell-Output-Resistance | 350 +/- 3.5 ohms |
| Construction | tool steel, nickel plated |
| dimensions | 5" x 2" x 7" |
| Hole-Threading | 1 1/4 - 12UNF |
| list-price | 317.00 |
| Load-Cell-output | 3.0 mV/V (Full Scale) |
| Load-Cell-Rated-Excitation | 10 VDC (maximum of 15 V) |
| manufacturer-part-number | SBA-20K |
| Operating-temperature | -30°C to 80°C |
| Spec Sheet | Spec_Sheet-Load_Cell_SBA.pdf |
| Warranty | 1 year limited manufacturer's warranty |
Shipping
Free US FedEx Ground shipping is for online orders greater than or equal to $500 if the item weighs less than 100lbs (actual and dimensional weight) and is inside of the contiguous United States (excluding Hawaii and Alaska).
