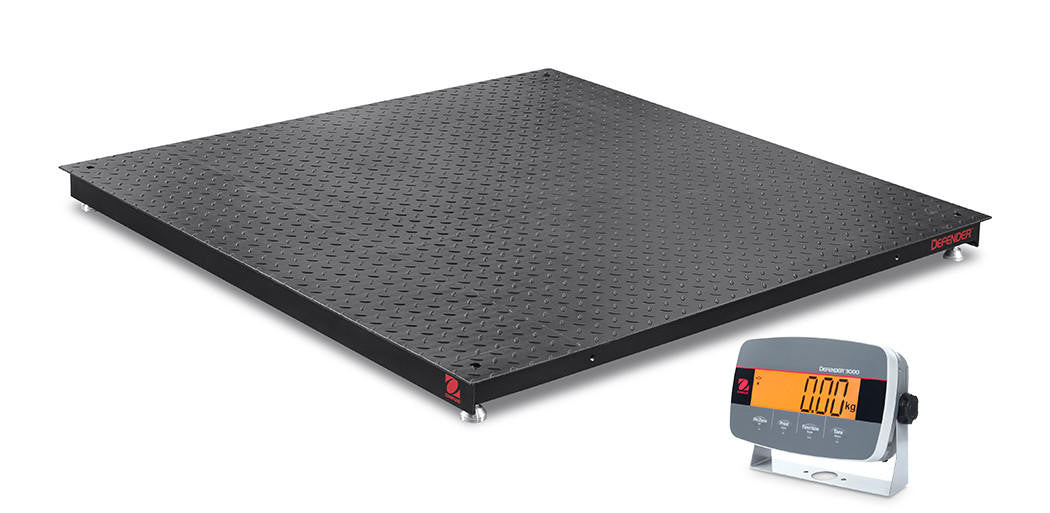

Ohaus i-DF33P5000B1X Defender 3000 Floor Scale, 5' x 5', NTEP, 5000 lb x 1 lb
The Ohaus Defender 3000 floor scale is the perfect solution for your industrial and commercial weighing requirements. These scales are built with premium-quality materials to ensure minimal flexing even under substantial loads, providing reliable and consistent performance over extended periods. The indicator is equipped with a brilliant display that can change color to indicate check weighing mode. Additionally, the scale comes with counting and totalization modes, offering versatility to suit various weighing needs. For added convenience, ramps and mounting plates are also available as optional accessories to enhance the usability of the Defender 3000 Floor Platforms.
Features:
5 ft. x 5 ft. platform
Powder coated carbon steel
Raised treaded surface
i-DT33P 6-digit, 7-segment, 1.8 in high digit LCD display
Checkweighing mode, display changes color (yellow/green/red)
Four alloy steel shear beam load cells with top-adjustable height swiveling ball-incup design
100 hour battery operation (C cell batteries not included)
RS-232 interface
Specifications
| Applications | Weighing, Checkweighing, Counting, Totalization |
|---|---|
| battery-life | 30 Hours with Rechargeable Battery; 100 Hours with Disposable Batteries |
| brand | Ohaus |
| capacity-g | 2500000 |
| Communication | Standard RS232 and optional USB Device or Ethernet |
| Construction | ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available |
| dimensions-mm | 1524 x 90 x 1524 mm |
| display | 7 Segment LCD with multicolor backlight |
| Legal-for-Trade | NTEP Certified |
| list-price | 2677.00 |
| Manual | Manual_Defender_3000.pdf |
| manufacturer-part-number | i-DF33P5000B1X |
| platform-construction | Painted Steel Diamond Plate |
| platform-size | 5 ft x 5 ft (1524 mm x 1524 mm) |
| power | 6 C (LR14) Batteries (Not Included); Rechargeable Battery (Not Included); AC Power (Included) |
| readability-g | 500 |
| Spec Sheet | Spec-Sheet_Defender_3000.pdf |
| tare-range | To capacity by subtraction |
| Weighing-Units | Metric Tons; Kilogram; Pound |
| working-environment | -10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing) |
