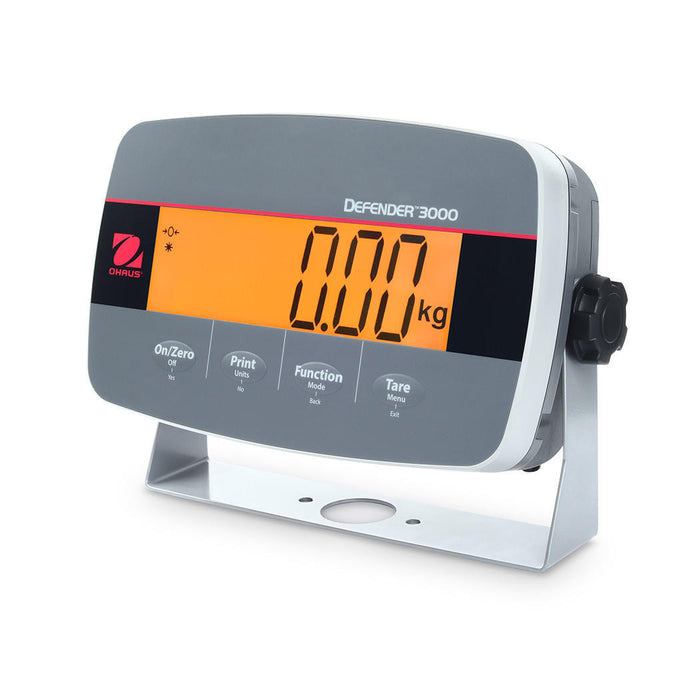

Ohaus i-DT33P Digital Indicator, NTEP
The OHAUS i-DT33P digital indicator is a high quality yet economical solution for basic industrial applications. It's capable of performing general weighing, counting, check weighing, and totalization. A new unique feature of the Defender 3000 indicator is the color changing backlight which provides a vivid status indication during check weighing applications. The i-DT33P is NTEP approved class III for use in legal for trade applications. It also includes standard RS-232 serial communication and offers the option for USB and Ethernet communication through additional accessories.
Features:
Hard wire connection through cord grip for connecting to any scale base
ABS housing, powder coated steel mounting bracket
IP54 rated
Large backlit LCD display with color changing prompts for check weighing
NTEP certified, Measurement Canada approved
External calibration function with zero calibration, span calibration, and three point linearization calibration
Up to 30,000 displayed resolution
Up to 1:6,000 NTEP and Measurement Canada displayed resolution
Powers up to (6) 350 ohm load cells
Interface includes RS-232 communication
Optional communication includes USB and Ethernet through accessories (not included)
Specifications
| Applications | General Weighing. Parts Counting. Check Weighing. Totalization |
|---|---|
| brand | Ohaus |
| Communication | RS232 |
| control | 4 membrane function keys |
| dimensions-mm | 251.5 x 177.8 x 134.6 mm |
| display | Color changing backlit LCD |
| Legal-for-Trade | Yes |
| list-price | 478.00 |
| Manual | Manual_Indicators_i-DT33.pdf |
| manufacturer-part-number | i-DT33P |
| power-supply | 100-240 VAC / 50/60 Hz Universal Power Supply |
| Spec Sheet | Defender_3000_Indicator_Spec_Sheet.pdf |
| stabilization-time | Within 1 second |
| temp.-range | 14°F to 104°F / -10°C to 40°C |
| Warranty | 1 year manufacturer's warranty |
| Weighing-Units | kg, lb, lb-oz, g, metric ton |
