Ricelake 175688 RoughDeck QC-X Quick Clean Stainless Steel Floor Scale, Diamond Tread Top Plate, 4' x 4', 5000 lb

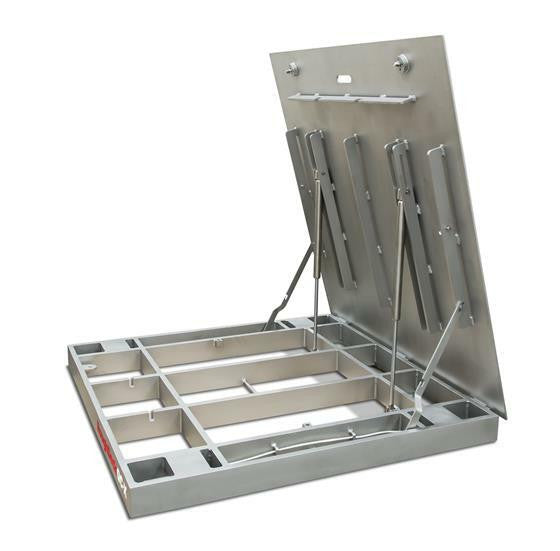

The Rice Lake RoughDeck QC-X Quick Clean Stainless Steel Floor Scale features a top plate that can be opened up to 75 degrees for easy access to the most difficult places to clean. This allows for the highest level of safety against microscopic bacteria in food processing, pharmaceutical, and chemical applications. The base is designed with solid stainless steel vertical plates that also allow for simpler cleaning.
Features:
Diamond tread plate deck
Rugged washdown design, rigid 304 stainless steel frame constructed with continuous welds
Manual drop-in-place safety bars
Four stainless steel, hermetically sealed, IP69K shear-beam load cells
20 ft of SURVIVOR EL147HE hostile environment cable for connecting junction box to indicator
Remote TuffSeal JB4SS stainless steel NEMA Type 4X junction box can be mounted up to 15 ft away
1/4 in top plate
Four adjustable stainless steel SUREFOOT™ support feet
Top plate opens 75 degrees
Tool-less top plate lock downs
Two 1/2-20NF threaded eye-bolt holes for lifting scale into pit frame
Specifications
| brand | Ricelake |
|---|---|
| cable-length | 20 ft |
| capacity-lb | 5000 |
| Construction | Stainless Steel |
| dimensions | 4' x 4' x 4.625" |
| Legal-for-Trade | No |
| list-price | 14420.00 |
| Manual | Manual-RoughDeck_QC-X.pdf |
| manufacturer-part-number | 175688 |
| pan-size | 4' x 4' |
| Spec Sheet | Spec_Sheet-RoughDeck_QC-X.pdf |
| Warranty | RoughDeck QC-X weldment five years, load cells two years, all other components one year |
