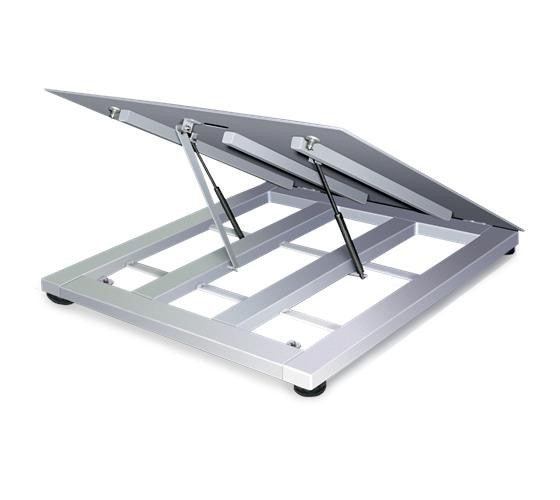

Ricelake 50402 RoughDeck QC Quick Clean Stainless Steel Floor Scale, 2.5' x 2.5', NTEP Class III, 2000 lb
The Rice Lake RoughDeck QC is a high quality solution for bulk weighing in food, chemical, and other demanding wash down applications. The QC features an exclusive gas-shock design the provides easy lifting and gentle closing. The floor scale also includes a drop in place support bar for added protection during extensive washing. The QC is also NTEP approved Class III for use in legal for trade applications.
Features:
Opens up to 37 degrees
Rugged wash-down design, rigid 304 stainless steel frame
Stitch welding standard (consult if continuous weld is required)
Manual drop-in-place safety bars
Four stainless steel, hermetically sealed, IP69K shear-beam load cells
20 ft of SURVIVOR EL147HE hostile environment cable for connecting junction box to indicator
Remote TuffSeal JB4SS stainless steel NEMA Type 4X junction box
3/16 inch thick top plate
Four adjustable stainless steel SUREFOOT™ support feet
Tool-less top plate lock downs
1/2-20NF threaded eye-bolt hole in the center for lifting scale into pit frame
NTEP Class III
Specifications
| brand | Ricelake |
|---|---|
| cable-length | 20 ft |
| capacity-lb | 2000 |
| Construction | Stainless Steel |
| dimensions | 2.5' x 2.5' x 3.5" |
| Legal-for-Trade | Yes |
| list-price | 7290.00 |
| Manual | Manual-RoughDeck_QC.pdf |
| manufacturer-part-number | 50402 |
| pan-size | 2.5' x 2.5' |
| Spec Sheet | Spec_Sheet-RoughDeck_QC.pdf |
| Warranty | RoughDeck QC weldment five years, load cells two years, all other components one year |
