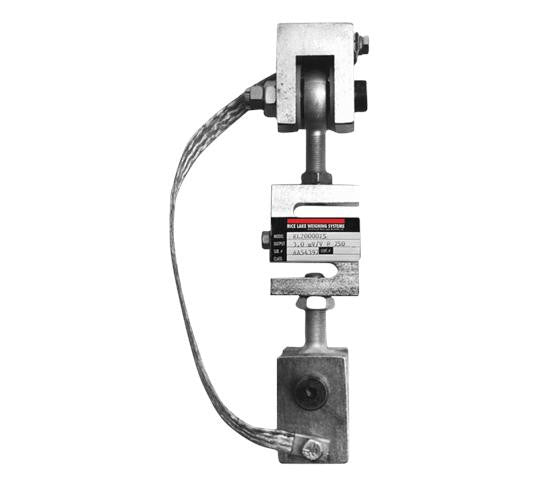

Ricelake ITCM 200 lb Suspension Module Kit, 1/2-13 UNC Threading

Rice Lake ITCM suspension mount kits are best suited for use in hanging scale applications such as hoppers or tanks. This Rice Lake ITCM module kit includes one RL20000 s-beam load cells, a grounding strap, and a zinc-plated clevis assemblies. The load cell is environmentally sealed with an IP 67 rating, constructed of nickel plated alloy steel, and has a 20 ft long load cell cable. The clevis and rod-end ball joint assemblies provide correct load alignment and reduces the overall length of the mount compared to traditional mount assemblies. Nylon washers and the grounding strap help protect the load cells from stray electrical currents.

Features:

1/2-13 UNC threaded mounting holes
200 lb individual load cell capacity rating
Alloy steel construction, nickel plated load cells
IP 67 rated load cells
Load cell cable length 20 ft
Load cell safe overload up to 150% capacity
NTEP Approved load cells
Mild steel zinc-plated clevis mounts with nylon insulating washers
Grounding straps
PTFE-Lined rode-end ball joints
Load Cell Rated Excitation 5-10 VDC (maximum of 15 V)
Load Cell Output 3 mV/V
