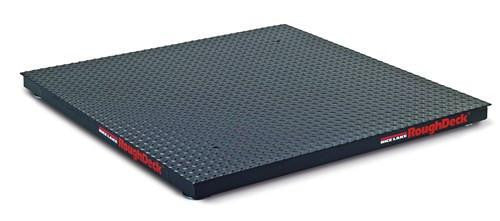

Ricelake 232016 RoughDeck HP Floor Scale Platform, 4' x 4', Quick Connect, NTEP, 2500 lb
Rice Lake RoughDeck HP floor scale platforms are designed to deliver high performance while maintaining reliability. RoughDeck HP platforms are built to last with a 6 in. structural steel channel frame and diamond treadplate safety deck. These floor scale platforms are equipped with 4 adjustable stainless steel SUREFOOT™ support feet and load cell and cable protection. The junction box can be accessed through a side panel, making service easier and quicker. RoughDeck HP floor scales are NTEP certified for use in legal-for-trade applications.
Specifications
| brand | Ricelake |
|---|---|
| capacity-lb | 2500 |
| Construction | Structural steel channel frame, diamond safety tread plate deck, painted steel |
| Legal-for-Trade | Yes |
| list-price | 2225.00 |
| Load-Cell | Four NTEP Certified alloy steel, shear beam load cells. 20 ft SURVIVOR® EL147HE hostile environment load cell cable with quick-disconnect.Localized deflection of the load cell is minimized by welding the mounting plate to the channel frame rather than the deck plate. |
| Manual | Manual-RoughDeck.pdf |
| manufacturer-part-number | 232016 |
| pan-size | 4' x 4' |
| Spec Sheet | Spec_Sheet-RoughDeck_HP.pdf |
| Warranty | Weldment: Five years. Load cells: Two years. All other components: One year |
Shipping
Free US FedEx Ground shipping is for online orders greater than or equal to $500 if the item weighs less than 100lbs (actual and dimensional weight) and is inside of the contiguous United States (excluding Hawaii and Alaska).
