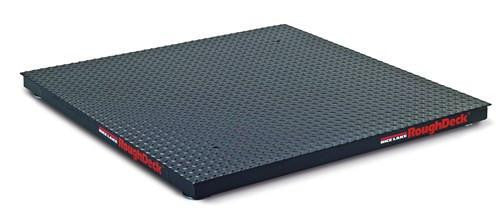

Ricelake 66314 RoughDeck HP Floor Scale Platform, 4' x 5', Quick Connect, Class III, NTEP, 5000 lb
Rice Lake RoughDeck HP floor scale platforms are designed to deliver high performance while maintaining reliability. RoughDeck HP platforms are built to last with a 6 in. structural steel channel frame and diamond treadplate safety deck. These floor scale platforms are equipped with 4 adjustable stainless steel SUREFOOT™ support feet and load cell and cable protection. The junction box can be accessed through a side panel, making service easier and quicker. RoughDeck HP floor scales are NTEP certified for use in legal-for-trade applications.
Specifications
| brand | Ricelake |
|---|---|
| capacity-lb | 5000 |
| Construction | Structural steel channel frame, diamond safety tread plate deck, painted steel |
| Legal-for-Trade | Yes |
| list-price | 2445.00 |
| Load-Cell | Four NTEP Certified alloy steel, shear beam load cells. 20 ft SURVIVOR® EL147HE hostile environment load cell cable with quick-disconnect.Localized deflection of the load cell is minimized by welding the mounting plate to the channel frame rather than the deck plate. |
| Manual | Manual-RoughDeck.pdf |
| manufacturer-part-number | 66314 |
| pan-size | 4' x 5' |
| Spec Sheet | Spec_Sheet-RoughDeck_HP.pdf |
| Warranty | Weldment: Five years. Load cells: Two years. All other components: One year |
