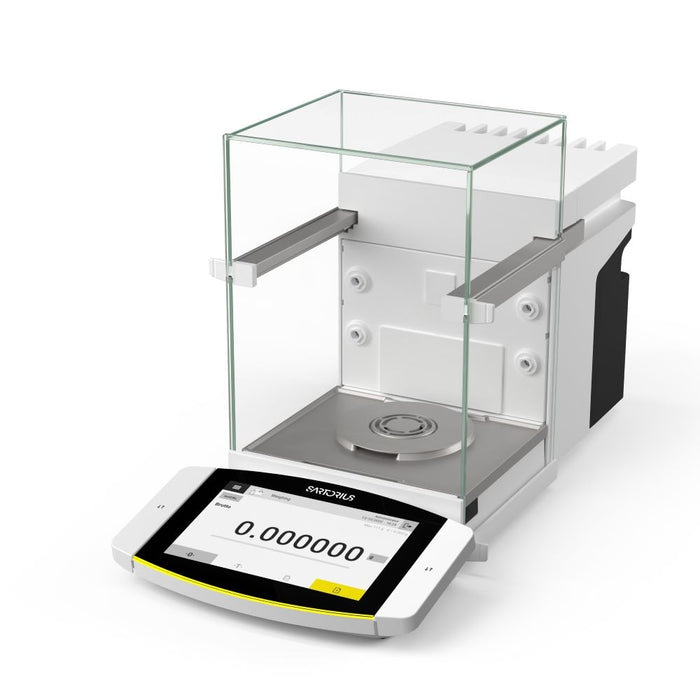

Sartorius MCA116S-3S00-D QP2 MDS Cubis II High-Capacity Micro Balance, with Draft Shield D, Activated Draft Shield Motors and software package QP2, 111 g x 0.002 mg (d)
The Cubis II Ultra-High Resolution Balances from Sartorius are precise analytical instruments used to weigh very small quantities of samples with high precision. The performance in a lab environment often deviates from instrument specifications due to varying environmental conditions and influences deriving from samples and users. The higher the resolution, the greater the relative measurement uncertainty is. Needless to say, these devices are particularly sensitive to imperfect laboratory conditions. The goal was to build a balance which is less prone to environmental effects, resulting in faster weighing workflows yet improved specifications.
Features:
Cubis II MCA high-capacity micro balance with large high end 7” color TFT touch display in 16:9 format with graphical user interface.
Actual scale division (d) 0.002 mg, nominal maximum load (Max) 111 g.
Automatic motorized glass draft shield with learning capability for user-friendly operation, automated motorized leveling and integrated licensable ionizer.
Standard version non-verified, all units.
Software package Advanced Applications (QP2):
- The Advanced software application package includes various complex weighing applications including evaluation. This includes applications used for density determination, percentage weighing, counting, backweighing, residual dirt analysis, residue on ignition, loss on drying, filter weighing, checkweighing, formulation, averaging, etc.
Specifications
| brand | Sartorius |
|---|---|
| capacity-g | 111 |
| Communication | USB-A, USB-B, USB-C |
| condition | Suitable for the weight of the device and the associated components. Stable, fully flat, even, low vibrations. Not directly against a wall. No heat from heating systems or direct sunlight. No drafts from open windows, AC systems, or doors. No vibrations. No "heavy traffic" areas (personnel). No electromagnetic fields. No dry air. |
| dimensions | 510 x 240 x 302 mm |
| display | 7” color TFT touch display in 16:9 format with graphical user interface |
| Draft-Shield | Draft Shield D / Manual glass analytical draft shield chamber, with smooth-action doors that open wide and provide unimpeded access to the weighing chamber |
| Legal-for-Trade | No |
| linearity | Tolerance 0.03 mg / Typical Value 0.02 mg |
| list-price | 37187.25 |
| Manual | Manual-Cubis_II_QApp.pdf |
| manufacturer-part-number | MCA116S-3S00-D QP2 MDS |
| Minimum-Weight | 1.64 mg |
| pan-size | ø 50 mm |
| readability-g | 0.000002 |
| Software-Packages-Included | QApp 2 |
| Spec Sheet | Spec-Sheet_cubis-ii.pdf |
| stabilization-time | 3.5 s |
