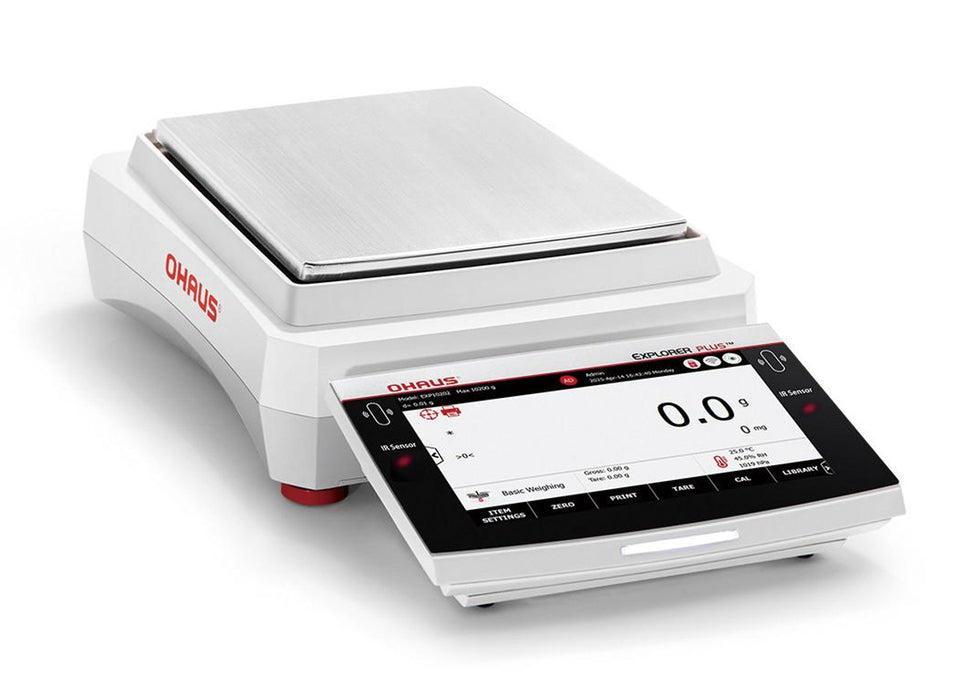

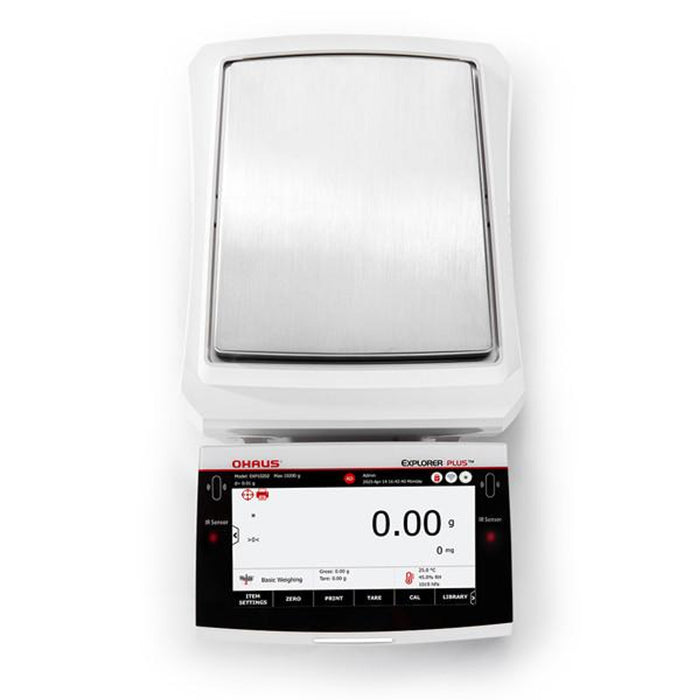

Ohaus EXP8201 Explorer Plus Precision Balance, 8200 g x 0.1 g
The Explorer EXP series offers a premium weighing performance, compliance support and data traceability. The advanced features take the EXP to the next level by optimizing the user experience. This Flagship balance is crafted to meet the most demanding requirements of modern scientific research.
Features:
- Seamless setup with motorized leveling, anti-pintch auto doors, touchless sensors,
- ionizers and draft shield lights. Has a 7-inch glass touchscreen, chemical protection and 2
modifiable status lights.
- Ensure compliance with 4-level user system, password protection, and 100k internal system log. The time synchronization NTP function confirms data traceability to meet the Pharmaceutical regulations.
- Advanced communication capabilities with straightforward integration to Laboratory Information Management Systems (LIMS), and hassle-free data transfer with driverless HID
for easy data input.
Specifications
| Applications | 15 application modes: Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control |
|---|---|
| battery-life | Not Applicable |
| capacity-g | 8200 |
| Communication | USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1 Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi/ Bluetooth Dongle |
| dimensions | 3.8 x 9 x 16.1 in. |
| display | The 7-inch touch screen display |
| in-use-cover | Included |
| internal-calibration | AutoCal™ - Automatic |
| Legal-for-Trade | No |
| linearity | 0.2 g |
| list-price | 5260.00 |
| Manual | Explorer_Plus_Manual.pdf |
| manufacturer-part-number | EXP8201 |
| Minimum-Weight | 14 g 140 g (Typical) 82 g (Optimal) |
| model | EXPLORER PLUS |
| net-weight | 12.1 lb |
| pan-construction | Stainless Steel |
| pan-size | Trapezoid Pan 178 x 201 mm |
| power | AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz AC Adapter Output: 12 VDC 1.5A 18W |
| readability-g | 0.1 |
| repeatability | 0.07 mg (≤5% of Full Load), 0.1 mg (5% of Full Load) |
| Spec Sheet | Explorer_Plus_Spec-Sheet.pdf |
| stabilization-time | ≤ 1 second |
| tare-range | To capacity by subtraction |
| Weighing-Units | 19 weighing units: g, ct, N, oz, ozt, GN, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, lb, kg, Customer 1, Customer 2 |
| working-environment | Indoor use only. Altitude: 2000 m Working ambient temperatures: 5.0 °C – 40.0 °C Humidity: Maximum relative humidity 80% for temperatures up to 31 °C decreasing linearly to 50% relative humidity at 40°C. Mains supply voltage fluctuations: up to ±10% of the nominal voltage. Installation category II |
