Ricelake 107495 RoughDeck CS Coil Floor Scale, 5' x 5', 80000lb, NTEP

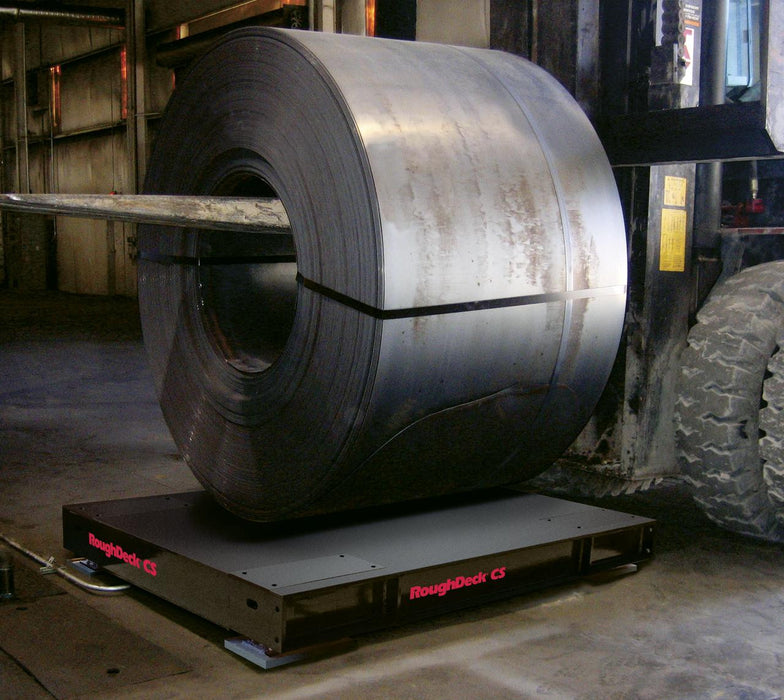

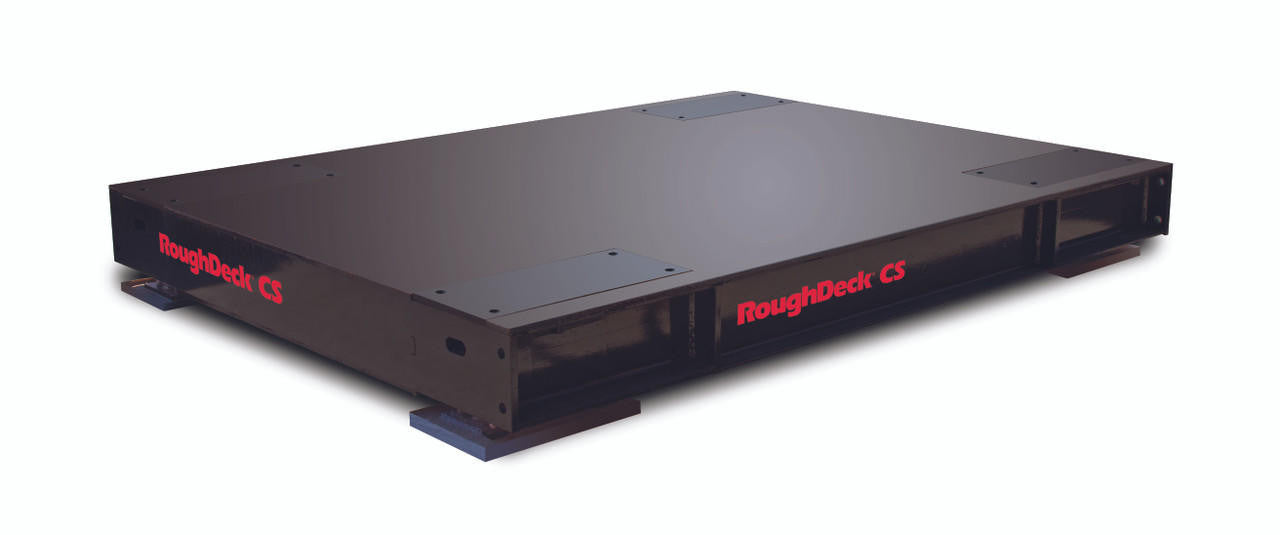

Rice Lake RoughDeck CS coil floor scales are designed for weighing dense industrial materials to Legal for Trade accuracy. For steel coils, castings, cable spools or more, RoughDeck CS is the perfect solution for steel handling applications. RoughDeck CS features tightly spaced steel I-beams, half-inch thick top plate, and the patented G-force™ self-checking mounting system. Additional accessories, including coil cradles, further enhance their functionality and capability. RoughDeck coil scales are built-to-last in demanding environments, with continuous use and years of reliability. Rice Lake RoughDeck CS floor scales are NTEP approved for use in legal-for-trade applications.
Features:
NTEP approved
Above ground or pit mounting
Low-profile, yet heavy duty
1/2" thick smooth top plate
G-Force Tuffseal® signal trim junction box conveniently tucked away and protected in one of the load cell pockets
MVS self-checking mounting system
Ease of installation and service with top access load cell pockets
Rigid conduit runs for load cell cables
Black epoxy paint
20ft Survivor EL147HE hostile environment load cell cable for connecting to an indicator
Specifications
| approvals | NTEP CC 11-068, Class III, 5,000 d |
|---|---|
| brand | Ricelake |
| cable-length | 20 ft for connecting junction box to indicator |
| capacity-lb | 80000 |
| dimensions | 60 x 60 x 11 in. |
| Legal-for-Trade | Yes |
| list-price | 16535.00 |
| manufacturer-part-number | 107495 |
| pan-size | 5 x 5 ft |
| Warranty | Manufacturer's limited warranty. 5 years on weldment, 2 years on load cells and 1 year on all other components. |
