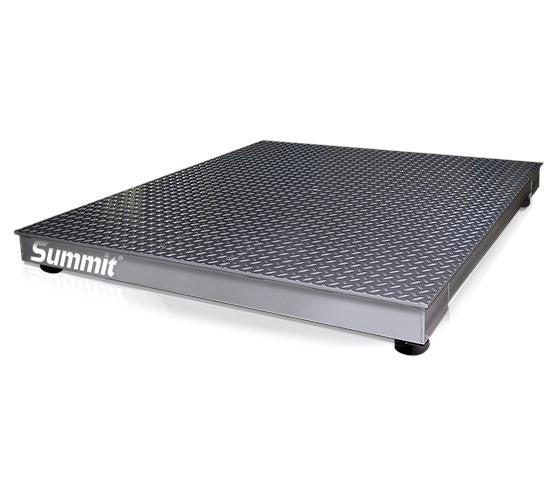

Ricelake 74724 Summit 3000 Floor Scale, 5' x 5', Class III, NTEP, 10000 lb
The Rice Lake Summit 3000 Floor Scale is a high quality economical solution for floor scale applications. The durable low profile design features non-slip diamond treadplating for added safety. This floor scale series also features a top access junction box, four adjustable load cell feet, and a 1/2-20UNF threaded eyebolt hole for transporting the scale. The Summit 3000 is NTEP Class III approved for use in legal for trade applications.
Features:
NTEP CC: 92-001A9, Class III 5000 d
Heavy-duty industrial design
Top access junction box
Signal trim summing board in sealed ABS enclosure
Four NTEP certified alloy steel shear beam load cells
Four adjustable rigid polyurethane rubber feet with 3" pads
Rugged diamond safety treadplate steel deck
1/2-20UNF threaded eyebolt hole located in the center of the deck for lifting
20 ft of EL147 load cell cable for connecting to an indicator
Specifications
| brand | Ricelake |
|---|---|
| cable-length | 20 ft |
| capacity-lb | 10000 |
| Construction | Painted Mild Steel |
| dimensions | 5' x 5' x 3.625" |
| Legal-for-Trade | Yes |
| list-price | 3415.00 |
| Manual | Manual-Summit_3000.pdf |
| manufacturer-part-number | 74724 |
| pan-size | 5' x 5' |
| Spec Sheet | Spec_Sheet-Summit_3000.pdf |
| Warranty | Summit 3000 weldment and load cells two years, all other components one year |
Shipping
Free US FedEx Ground shipping is for online orders greater than or equal to $500 if the item weighs less than 100lbs (actual and dimensional weight) and is inside of the contiguous United States (excluding Hawaii and Alaska).
