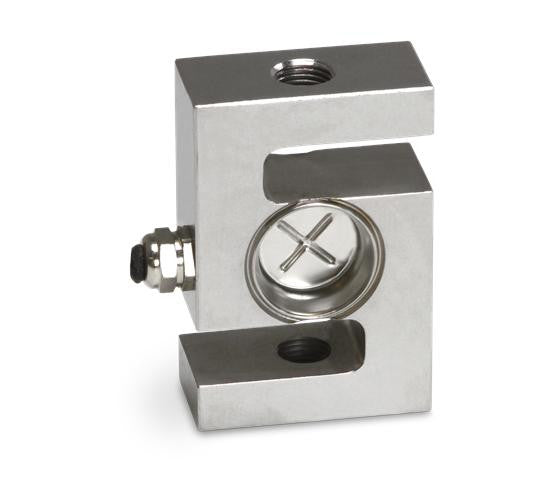

Ricelake ITCMHE 500 lb Module, 3/4-10 NC Threading, NTEP

Rice Lake ITCMHE hostile environment suspension mount kits are best suited for suspended hoppers and tanks, mechanical scale conversions, and custom tension applications. This Rice Lake ITCMHE module kit includes one RL20001HE s-beam load cells, a grounding strap, and a complete stainless steel clevis assemblies. Rice Lake RL20001HE load cells are IP68 rated, constructed of stainless steel, and are NTEP approved. The clevis and rod-end ball joint assemblies provide correct load alignment and reduces the overall length of the mount compared to traditional mount assemblies. Nylon washers and grounding straps help protect the load cells from stray electrical currents.

Features:

IP68 welded seal load cell for hostile environments
One fully stainless steel module and load cell
3/4-10 NC threaded mounting holes
Clevis mounts with nylon insulating washers
PTFE lined rod-end ball joints
Load cell is completely isolated from stray currents
Included grounding strap provides alternative path to ground
Lower overall height compared to other isolated tension assemblies
Load Cell Rated Excitation 5-10 VDC (maximum of 15 V)
Load Cell Output 2 mV/V
Seal Type: Welded seal
NTEP approved load cell
