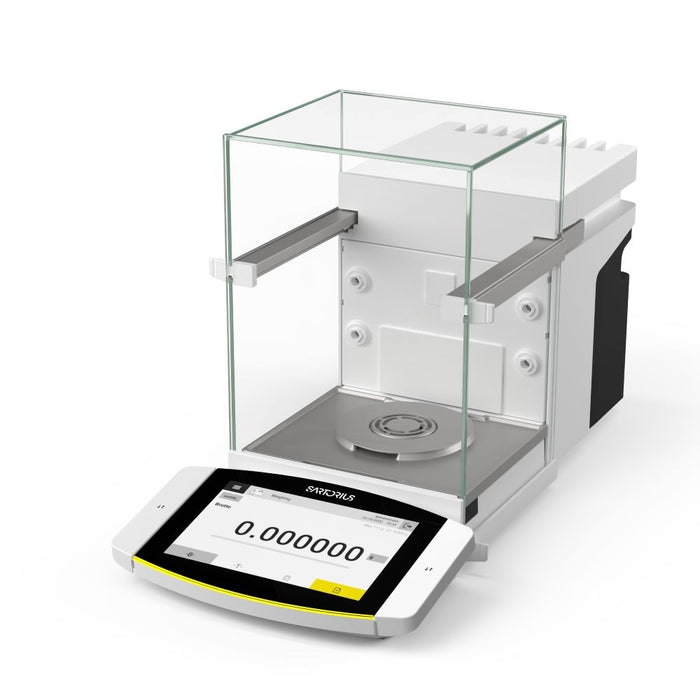

Sartorius MCA116S-3S00-D QP1 QP2 QP3 Cubis II High-Capacity Micro Balance, with Draft Shield D and software packages QP1, QP2 & QP3, 111 g x 0.002 mg (d)
The Cubis II Ultra-High Resolution Balances from Sartorius are precise analytical instruments used to weigh very small quantities of samples with high precision. The performance in a lab environment often deviates from instrument specifications due to varying environmental conditions and influences deriving from samples and users. The higher the resolution, the greater the relative measurement uncertainty is. Needless to say, these devices are particularly sensitive to imperfect laboratory conditions. The goal was to build a balance which is less prone to environmental effects, resulting in faster weighing workflows yet improved specifications.
Features:
Cubis II MCA high-capacity micro balance with large high end 7” color TFT touch display in 16:9 format with graphical user interface.
Actual scale division (d) 0.002 mg, nominal maximum load (Max) 111 g.
Manual glass draft shield with learning capability for user-friendly operation, automated motorized leveling and integrated licensable ionizer.
Standard version non-verified, all units.
Software packages Pharma (QP1), Advanced Applications (QP2) and Utilities (QP3):
- The Pharma software package contains applications concerning the topic compliance with pharmaceutical-relevant guidelines, such as 21 CFR Part 11 and USP 39, Chapter 41. The Pharma package includes applications such as user management, digital signatures, audit trail, USP minimum weight.
- The Advanced software application package includes various complex weighing applications including evaluation. This includes applications used for density determination, percentage weighing, counting, backweighing, residual dirt analysis, residue on ignition, loss on drying, filter weighing, checkweighing, formulation, averaging, etc.
- The Utilities software application package contains weighing applications and function extensions such as bootscreen, color scheme, free formula, fiber coarseness, diameter determination, air buoyancy correction, paper weight, statistics, and printing of QR / bar codes.
Specifications
| brand | Sartorius |
|---|---|
| capacity-g | 111 |
| Communication | USB-A, USB-B, USB-C |
| dimensions | 510 x 240 x 302 mm |
| display | 7” color TFT touch display in 16:9 format with graphical user interface |
| Draft-Shield | Draft Shield D / Manual glass analytical draft shield chamber, with smooth-action doors that open wide and provide unimpeded access to the weighing chamber |
| Legal-for-Trade | No |
| linearity | Tolerance 0.03 mg / Typical Value 0.02 mg |
| list-price | 38975.61 |
| Manual | Manual-Cubis_II_QApp.pdf |
| manufacturer-part-number | MCA116S-3S00-D QP1 QP2 QP3 |
| Minimum-Weight | 1.64 mg |
| pan-size | ø 50 mm |
| readability-g | 0.000002 |
| Software-Packages-Included | QApp 1, 2, & 3 |
| Spec Sheet | Spec-Sheet_cubis-ii.pdf |
| stabilization-time | 3.5 s |
